THREE SYSTEMS. ONE ENVELOPE.
Solar for every premium roof — tile, metal, and commercial scale
VOLTAIC designs and manufactures integrated solar roofing systems. ICON replaces concrete roof tile on premium homes. TYCOON integrates into ribbed metal roofs and walls on commercial, agricultural, and data center buildings. V72 high-efficiency modules serve every roof type and ground mount.
ICON
CONCRETE SOLAR ROOF TILE
.
An architectural concrete tile that is the roof and the PV module in one unit. 17.5W per tile, 1,540 watts per roofing square, ventilated double-batten assembly, 30-year roof warranty.
FIELD-PROVEN
10 yrs
FLORIDA APPROVED
HVHZ
TYCOON
METAL ROOF + CLADDING SOLAR
.
Rib-mounted matte-black collectors for metal-panel buildings — roofs and generating facades. Under 1.5 lb/ft² installed, no racking above the roofline, sub-5-year reference payback.
FIRE RATED
Class A
V72
COMMERCIAL SOLAR MODULES
.
144 half-cell monocrystalline modules, 530-550W, >21% efficiency, 1500V system architecture. All roof types and ground mounts. 30-year linear power warranty, non-FEOC supply chain.
HAIL IMPACT
Class 4
THE CRAFT
Uniform matte black. Engineered to disappear.
Every visible component across the VOLTAIC line — tile, collector, rail, clamp — is finished in uniform matte black and engineered into the roof plane, not on top of it.

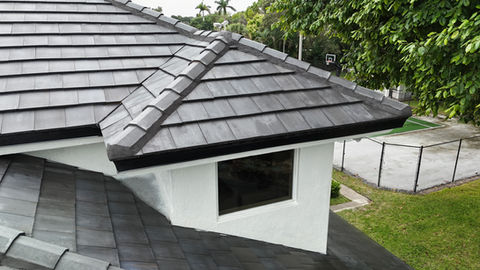

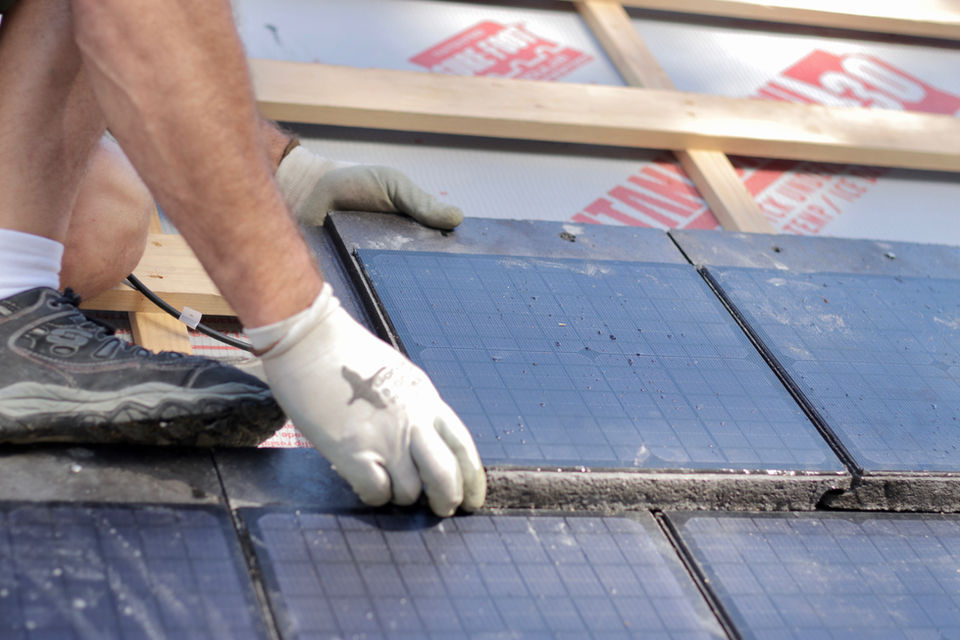

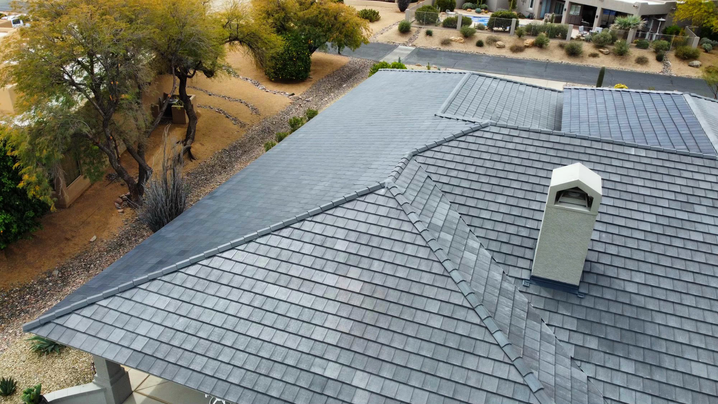

ICON
THE TILE THAT IS THE ROOF
One unit, two duties: an architectural concrete tile and a PV module. Concrete header above, matte photovoltaic face below — a uniform slate-style surface with no dummy tiles and no exposed hardware.
.
TYCOON
SOLAR BUILT INTO THE METAL ROOF
Matte-black collectors seat between the panel ribs, held by the custom-formed Hat Clamp — no racking above the roofline, on roofs and generating facades alike. The array reads as premium cladding, not equipment.
.
SPECIFIED BY PROFESSIONALS
Why architects specify VOLTAIC
INTEGRATED SOLAR ROOFING
The roof and the array are one assembly — no rack-mounted equipment on the finished plane.
ARCHITECTURAL AESTHETICS
Uniform matte-black surfaces that preserve rooflines across residential and commercial envelopes.
HURRICANE APPROVED
Florida HVHZ approval (FL46604) and wind uplift tested to 180 MPH.
CONCEIRGE INSTALLATION SUPPORT
Roof-first practices, single-crew sequencing, and full permit-packet documentation.
CLASS A FIRE RATED
ASTM E108 / UL 790 roof assembly fire testing; WUI-zone ready.
INVERTER & BATTERY AGNOSTIC
Compatible with modern inverters and storage, including Tesla Powerwall.
The authority layer - specifications, testing, and documentation
Everything below the fold is structured for both permitting teams and machine readers: real HTML tables, visible FAQ content, and schema.org markup on every page.
SPECIFICATION - ICON
Max power per tile
Watts per roofing square
Cell efficiency
Fire Rating
Wind resistance
Florida Building Code
Warranty
Is ICON a full roof replacement or an add-on?
ICON is a full roof replacement system. The concrete solar tiles replace traditional roofing materials while generating energy, resulting in a single, unified roof assembly rather than equipment added on top of a roof.
Can ICON be installed in hurricane, wildfire, or high-wind zones?
Yes. ICON is approved for High Velocity Hurricane Zones (HVHZ) and meets stringent wind uplift and Class A fire-rating requirements, allowing installation in jurisdictions where many solar products are restricted or prohibited.
VOLTAIC - company facts. Designer and manufacturer of integrated solar roofing systems: ICON concrete solar roof tile, TYCOON metal-roof and cladding solar, and V72 commercial solar modules. Headquartered in Coralville, Iowa, with offices in Phoenix, Arizona; Las Vegas, Nevada; and Ft. Myers, Florida. Certifications include UL 61730, IEC 61215, ASTM E108 / UL 790 Class A, Florida Building Code FL46604 (HVHZ), and CEC listing. Contact: info@voltaictile.com.
25-yr roof · 25-yr power · 10-yr product
Class A - ASTM E108 / UL 790
Tested to 180 MPH uplift
FL46604 - HVHZ approved
17.5W (±3%)
1,540
>21.6%
THE PERMIT PACKET
Datasheets, UL certificates, and code evolution reports - the same documents your inspector saw last week, in the same format.
